Safety barrier with A‑profile as safety rail, UNP as top rail fixed at ▢55 post. Different installation options are available. Different installation options are available.
Nordic W H2
Arbetsbeskrivning
Ladda ner
Performance
Harmonised standard: EN1317‑5:2007/A2:2012
- Containment level
- Working width (class)
- Impact severity level
- Vehicle intrusion (class)
- Resistance to snow removal
- H2
- W3
- B
- VI3
- 3
- Post spacing (m)
- Working width (m)
- Dynamic defl. (m)
- Construction width (m)
- Construction height (m)
- Durability
- 1.8
- 0.9–1.0
- 0.7–0.9
- 0.17
- 1.2 / 1.4
- Hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115
- Containment level
- Working width (class)
- Impact severity level
- Vehicle intrusion (class)
- Resistance to snow removal
- H2
- W3
- B
- VI3
- 3
- Post spacing (m)
- Working width (m)
- Dynamic defl. (m)
- Construction width (m)
- Construction height (m)
- 1.8
- 0.9–1.0
- 0.7–0.9
- 0.17
- 1.2 / 1.4
- Durability:
- Hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115
Document
Declaration of performance
Download
Working instruction
Download
Product information
Download
More information
Alternatives for installation
Infill
Parapet lighting
Order drawing

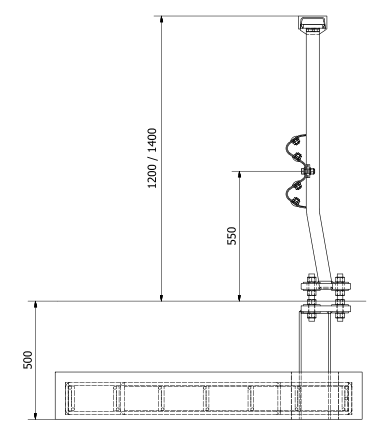

Alternatives for installation
Nordic W H2 can be installed in different ways.. Standard solutions are available for edge beams/plinths in the plane of the road/bridge surface or elevated as well as for concrete or steel foundations (for use in soil).
All installation alternatives for Nordic W H2 are CE-marked according to EN 1317–5 and approved by Rise (Notified Body).We also offer installations according to the customer’s specifications, e. g. steel brackets for side mounting on wooden bridges. Please contact us for further information.
Raised edge beam
Roadway level
Concrete foundation
Steel foundation
Exposure drawing for bolt groups, edge beam A
Download
Exposure drawing for bolt groups, edge beam B
Download
Infill
Nordic W H2 can be installed with different types of infill. Standard infills like vertical bars, splash protection and mesh are available for parapets placed on edge beams/plinths with differing height above the bridge surface. Infills for Nordic W H2 are CE-marked according to EN 1317–5 and approved as a part of the parapet by Rise (Notified Body). These infills are designed to withstand loads from snow removal.We also offer infills adapted to the customer’s specifications. Please contact us for further information.

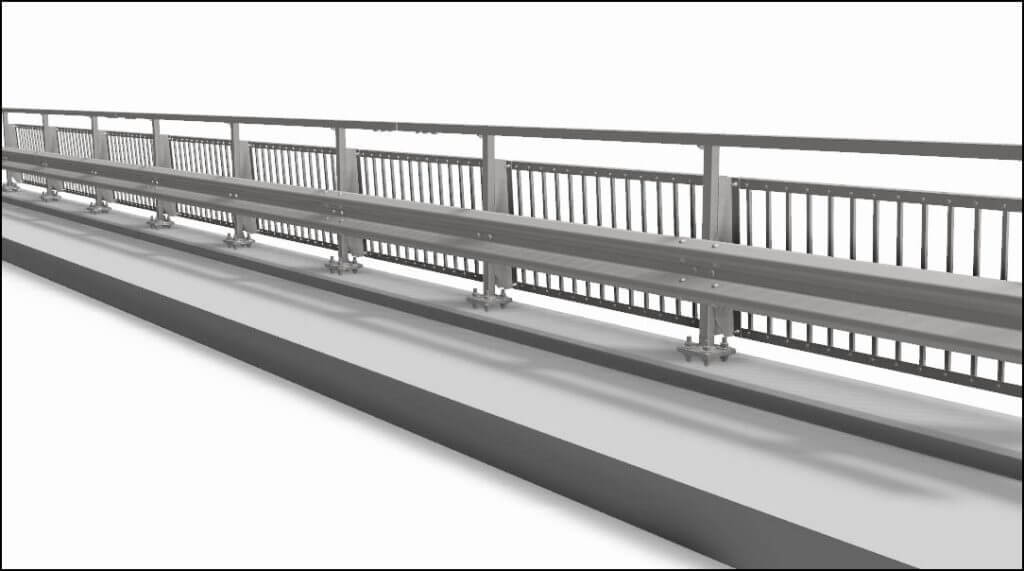

Vertical bars

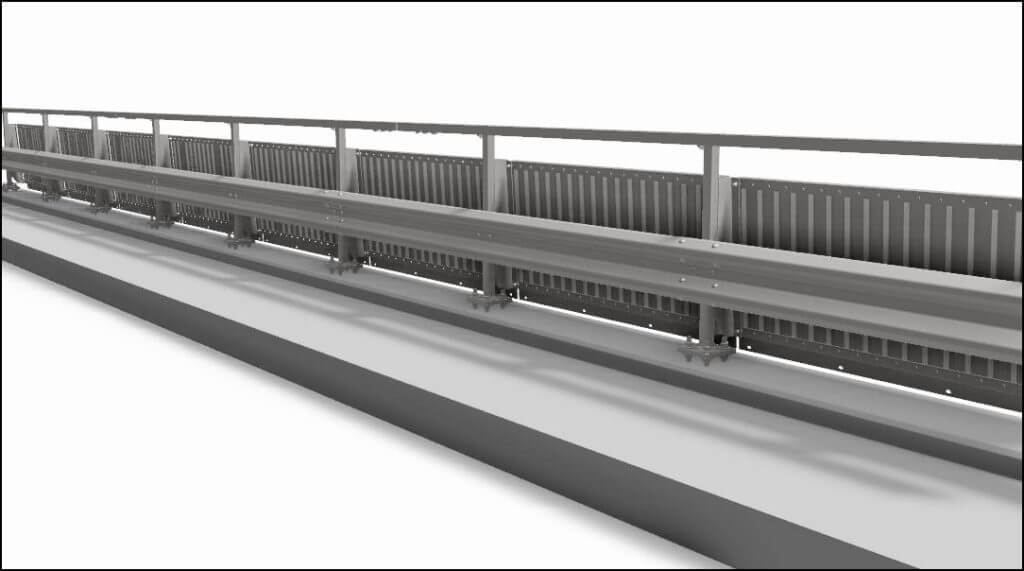

Splash protection

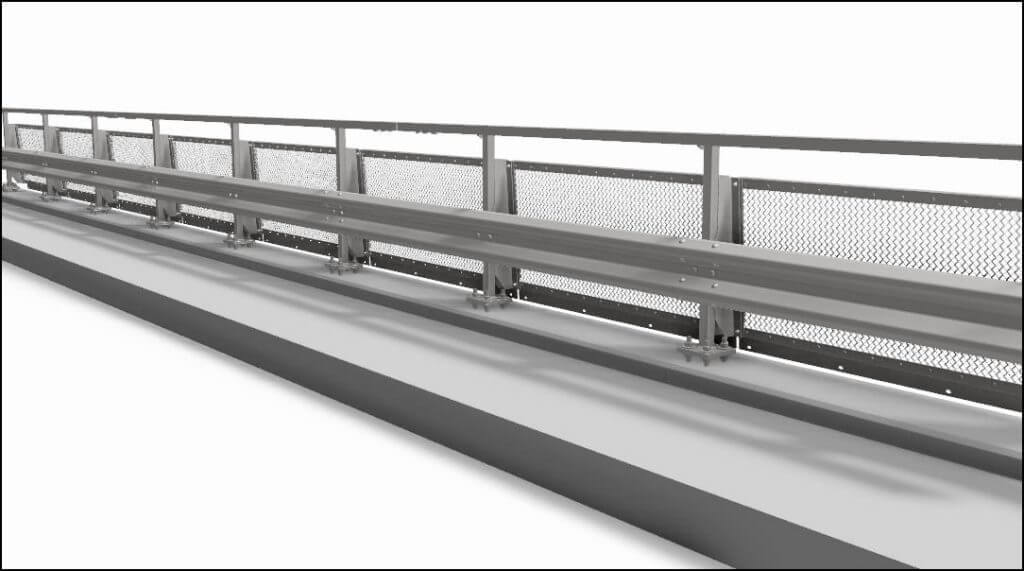

Mesh
Parapet lighting
Nordic W H2 can be installed with different types of lighting. The lighting to Nordic W H2 is CE-marked according to EN 1317–5 and approved as a part of the parapet by Rise (Notified Body).Please contact us for further information.
